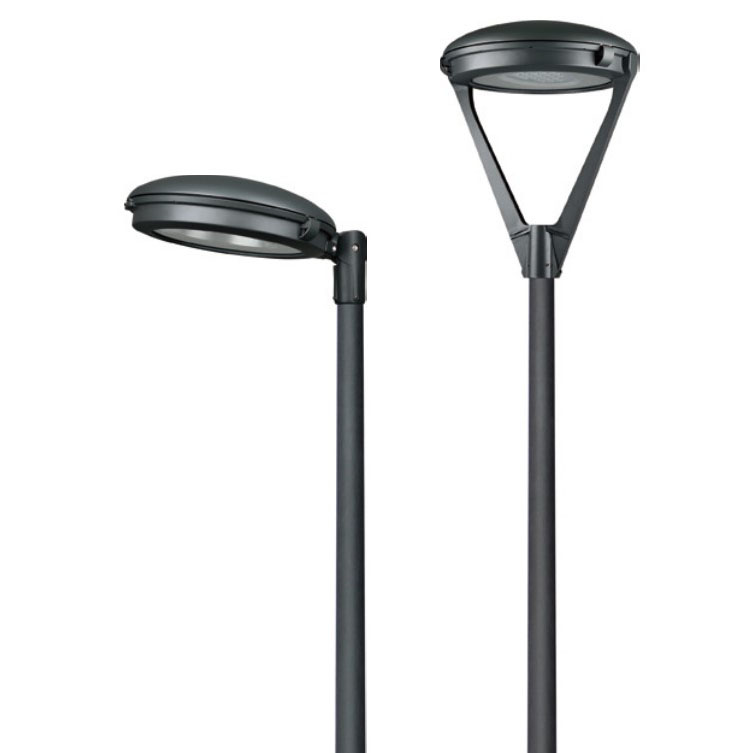

SLLG-21H/T-21L

SLLG-21H/T-21L

Body：  Die-cast aluminum.

Optical system:   Anodized aluminum reflector and flat or lenticular tempered glass cover.

Gear plate: Galvanized steel plate, extruded aluminum fastening.

Finishing: Surface anti-aging electrostatic spray processing, super resistance to corrosion.

Assembling height : 4-9m.

Fixing: Top or side fitting ∅60mm, ∅76mm fixing be option.

קטגוריה:

תיאור

Technology Data

Code Lamp Output power LED

Pcs

 Lumen N.W.

(kg)

 G.W.

(kg)

 Packing box size（mm） Quantity in a container
Pcs/20” Pcs/40”
D-21HLED40-24 LED 40W 24 4018 10.8 11.8 550*550*210 400 840
D-21HED60-24 60W 24 5617 10.8 11.8
D-21HLED60-36 60W 36 6080 10.8 11.8
D-21HLED80-36 80W 36 7639 11.0 12.0
D-21HLED60-48 60W 48 5910 10.8 11.8
D-21HLED80-48 80W 48 7805 11.0 12.0
D-21HLED100-48 100W 48 9108 11.2 12.2

T-21LLED40-24 LED 40W 24 4018 12.3 13.3 Body:

550*550*210

Bracket:

660*550*265

/6PC

 328 680
T-21LLED60-24 60W 24 5617 12.3 13.3
T-21LLED60-36 60W 36 6080 12.3 13.3
T-21LLED80-36 80W 36 7639 12.5 13.5
T-21LLED60-48 60W 48 5910 12.3 13.3
T-21LLED80-48 80W 48 7805 12.5 13.5
T-21LLED100-48 100W 48 9108 12.7 13.7
