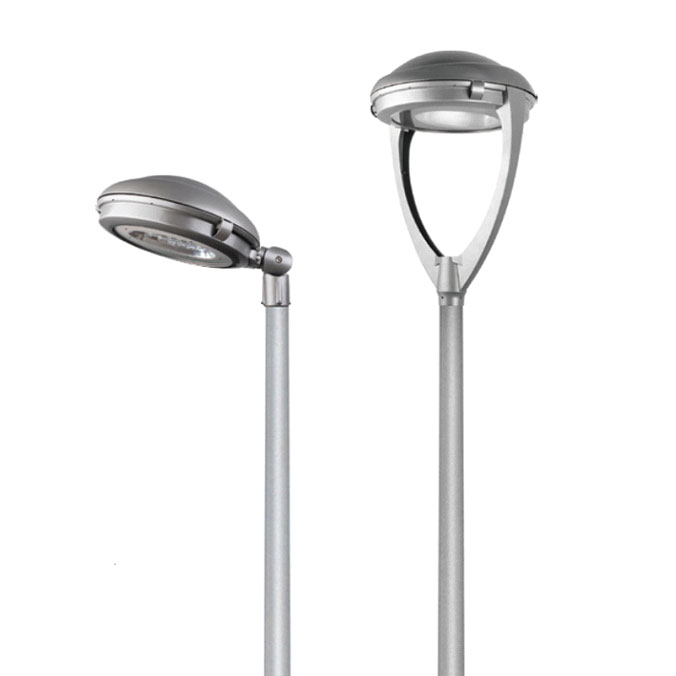

SLLG-20H/T-20L

SLLG-20H/T-20L

Body：  Die-cast aluminum.

Optical system:   Anodized aluminum reflector and flat or lenticular tempered glass cover.

Gear plate: Galvanized steel plate, extruded aluminum fastening.

Finishing: Surface anti-aging electrostatic spray processing, super resistance to corrosion.

Assembling height : 4-9m.

Fixing: Top or side fitting ∅60mm .

קטגוריה:

תיאור

Technology Data

Code Lamp Output power LED

Pcs

 Lumen N.W.

(kg)

 G.W.

(kg)

 Packing box size（mm） Quantity in a container
Pcs/20” Pcs/40”
D-20HLED40-24 LED 40W 24 4018 11.8 12.8 550*550*250 360 756
D-201HED60-24 60W 24 5617 11.8 12.8
D-201HLED60-36 60W 36 6080 11.8 12.8
D-20HLED80-36 80W 36 7639 12.0 13.0
D-20HLED60-48 60W 48 5910 11.8 12.8
D-20HLED80-48 80W 48 7805 12.0 13.0
D-201HLED100-48 100W 48 9108 12.2 13.2

T-20LLED40-24 LED 40W 24 4018 13.3 14.3 Body:

550*550*250

Bracket:

660*550*265

/6PC

 288 600
T-20LLED60-24 60W 24 5617 13.3 14.3
T-20LLED60-36 60W 36 6080 13.3 14.3
T-20LLED80-36 80W 36 7639 13.5 14.5
T-20LLED60-48 60W 48 5910 13.3 14.3
T-20LLED80-48 80W 48 7805 13.5 14.5
T-20LLED100-48 100W 48 9108 13.7 14.7
