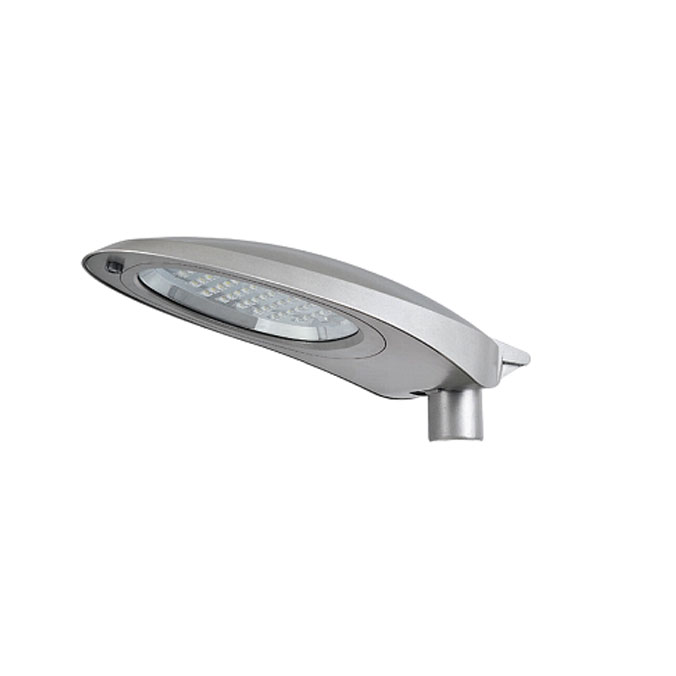

Body： Die-cast aluminum.
Optical system: Anodized PP plastic reflector and special light distribution lens, diffuser with super white tempered glass.
Gear plate: Aluminum plate, special screw fastening.
Finishing: Surface anti-aging electrostatic spray processing, super resistance to corrosion.
Assembling height:4-7m.
Fixing: Top or side fitting ∅60mm,angle can be adjustable.
Technology Data
| Code | Lamp | Output power | LED
Pcs |
Lumen | N.W.
(kg) |
G.W.
(kg) |
Packing box size（mm） | Quantity in a container | |
| Pcs/20” | Pcs/40” | ||||||||
| D-150SLED40-24 | LED | 40W | 24 | 4018 | 6.3 | 7.3 | 670*335*190 | 612 | 1260 |
| D-150SLED60-24 | 60W | 24 | 5617 | 6.3 | 7.3 | ||||
| D-150SLED60-36 | 60W | 36 | 6080 | 6.3 | 7.3 | ||||
| D-150SLED80-36 | 80W | 36 | 7639 | 6.5 | 7.5 | ||||
| D-150SLED60-48 | 60W | 48 | 5910 | 6.3 | 7.3 | ||||
| D-150SLED80-48 | 80W | 48 | 7805 | 6.5 | 7.5 | ||||
| D-150SLED100-48 | 100W | 48 | 9108 | 6.8 | 7.8 | ||||
