1. Features
• Introducing the module combination design concept, heat radiator
is made of high quality aluminum alloy extrusion profiles modules.
The pure copper heat pipes are built in the slots of the radiator.
Adopting the special pressing, fastening and riveting technology,
the heat pipes and heat source in very tight contact. The heat pipes
transfer the heat to the radiator with a large area.Greatly enhance
the thermalconductive velocity, rapidly reduce the temperature
of the light source and ensure the cooling requirement and the
working life of the LED light source. The surface of the radiator was
processed with anodic oxidation and anti-corrosion treatment. The
structure of the radiator is compact and beautiful.

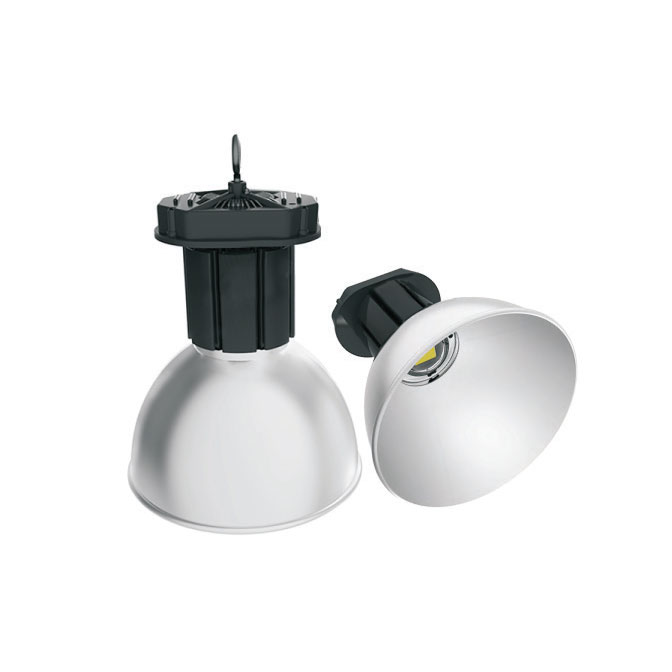

• The LED high bay light uses 1pcs Bridgelux COB as light source. It
has long lifespan, high luminous efficiency, good heat dissipation,
low radiation and low power consumption.Compared with the tradi
tional lamps with the same brightness, it saves energy up to 91.5%
• Adopting MEANWELL constant, integration, waterproof, external
power supply, it has international universal AC input range (up to
305VAC) with active PFC function and Short circuit / over current /
over temperature / over voltage protection with IP65.
• Adopting high-purity aluminum reflector, it makes the lamps has
wide illumination angle, uniform illumination, no glare, no flicker.
According to the need, customers can choose 120°, 90° or 45° re
flector.
• According to the need, the customers can choose light source with
different color temperature, such as Cool White, Natural White,
Warm White and so on.
• No mercury, lead and other hazardous substances,no pollution to
the environment UL, DLC, TUV, FCC, CE, RoHS certified.

2. Application
• Widely use: Factory, industrial and mining enterprises, the oil indus
try, chemical plant, workshop, warehouse, highway toll stations, gas
stations, supermarkets, exhibition halls, such indoor lighting places
