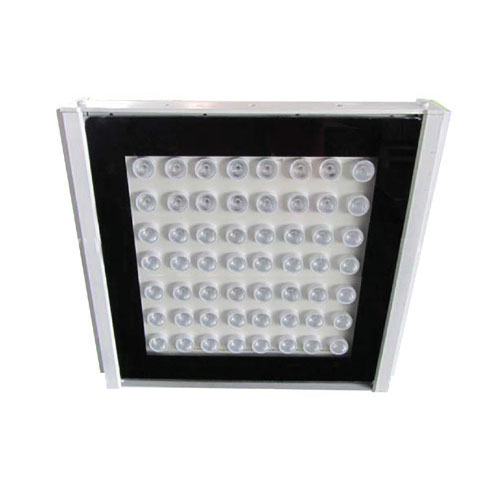

Mini 340 LED Canopy Light 120W

Mini 340 LED Canopy Light 120W

Special Feature
• Quality Waterproof Driver
(Taiwan Meanwell driver).
A. High EMC, no interfere
B. Power factor>0.95
C. Power Efficiency >90%
D. UL, TUV, PSE compliance
E. Full protection: short circuit, over voltage, over current and over temprature
• High-performance Original CREE LED
(Made in USA) and perfect wiring design.
It has High CRI and High lumens and high reliablity.
Even if one led failed, t he remaining LEDs
will still work.
• Safety
A. CE, RoHS, PSE, FCC, C-TICK, ATEX, EN62471, IP66, ETL
pending, SAA pending
B. IP66 approved (Water proof)
C. EN 62471 (Photobiological Safety)
D. 4000V Hi-pot test pass.
Low Light Loss
• The light source is the low light loss and high-bright LED,
in which the loss is less than 5% for every 10,000 hours.
The aluminum back-side housing performs an excellent
heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.
Environment-Friendly
• While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance,
such as Lead and Mercury.
Anti-vibration
• Solid-state device. Can withstand Moderate vibrations.

קטגוריה:

תיאור

Application:
• Petrol Stations
• Sport Stadiums
• Carwash Area
• Car Parking

Technical Specifications

Replacement 300-350w Sodium/metal lamp (Recommended)
LED Source CREE LED(XP-E/R3)
IP Rating IP 66
(water proof, dust proof and damp proof)
Lamp Power 120W±10%
Input Voltage 90-295VAC(47-63Hz)
Power Factor (PF) >0.95
Power Efficiency >90%
Luminous Flux 10000-11000Lm
Light Efficiency 90Lm/w
Average CRI Ra>80
Luminous Uniformity >0.6
Bean Angle 60 degree (Standard), 90/120 available
Color Temperature
NW 4000-4500K
CW 6000-6500 K
Working Lifetime >50000hrs
Light Distribution Curve
(Beam Pattern) Asymmetric(Bat Wing )/Rectangular Beam
Light Body and Lampshade
Material Aluminum Alloy and Tempered glass
Storage Temperature -30oC -+80oC
Working Environment -30oC -+50oC:10%-95%RH
Junction Temperature (Tj) 60oC ±10%(ta=25oC)
Weight 8.5kg
Product Size (mm) 343×343×140
Package Size (mm) 420×390×230 (1PC)
